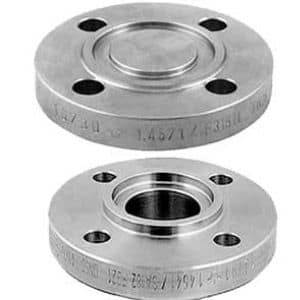

Specifications of tongue and groove flanges
Specifications of tongue and groove flanges
Specifications
Enhance your piping systems with precision-crafted Groove & Tongue Flanges from Platinex Piping Solutions, a leading manufacturer, supplier, and exporter based in Mumbai, India.
Compliant with ASME B16.5, ASME B16.47, MSS SP44, ASTM A182, ASTM A240, ASTM A105, ASTM A350, ASTM SB564 standards, our stainless steel and alloy steel flanges feature raised ring (Tongue) and matching depression (Groove) designs, ensuring secure connections for pump covers and valve bonnets. Available in sizes from 1/2″ to 60″ NB, pressure ratings from 150 LBS to 2500 LBS, and compliant with ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48, our flanges cater to diverse applications. Choose from Raised Face, Ring Type Joint, Large Tongue & Groove, or Small Tongue & Groove facings, ensuring optimal performance in industries such as oil and gas, petrochemicals, power generation, and more. Partner with us to experience unparalleled quality and reliability in your piping solutions.
Use of the product
Tongue and groove flanges suppliers are used in a variety of piping systems including oil and gas, chemical, pharmaceutical, and more. Suitable for use in applications where strong, leak-free connections are required, such as high-pressure pipelines and corrosive environments. The flanges are also easy to install and can be used with a variety of gasket and bolting options.
Advantages of tongue and groove flanges
The seal in the groove of this flange is not extruded, resulting in the smallest compression area and uniform sealing
Since the seal does not come into direct contact with the medium, it is hardly affected by corrosion of the medium or intrusion of the pressurizing.
Narrow sealing surface requires less screw force and is suitable for high pressure applications with stringent sealing requirements such as: Under high pressure, flammable, explosive, toxic media and in other cases.
