About SORF

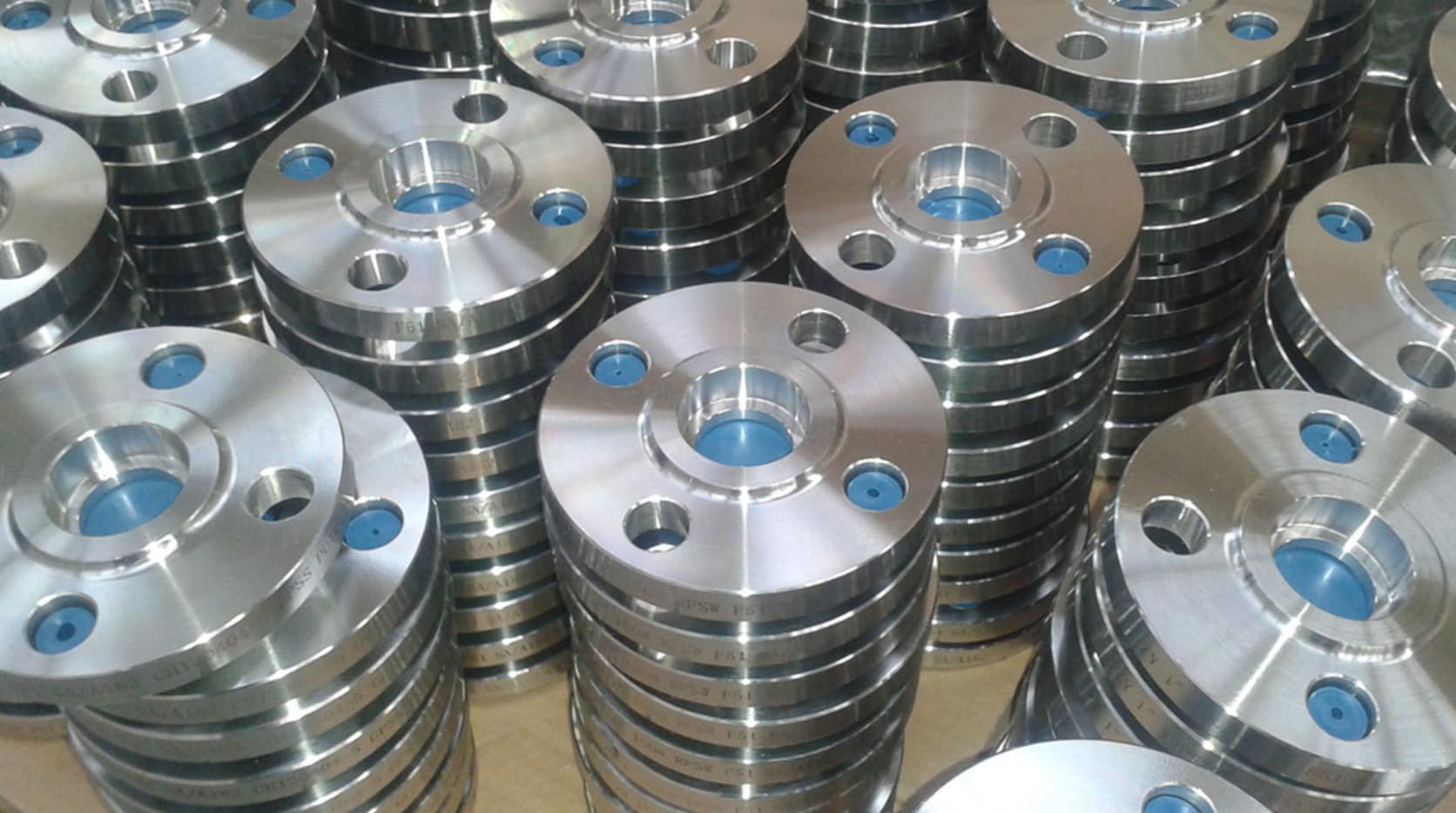

One kind of flange that is designed to fit over the end of a pipe and be welded in place is called a slip on raised flange. Raised slip-on flanges are round, flat discs with a hole in the center. The objective is to connect two pipes using screws. These consist of four parts. This is a base ring that attaches to the pipe. An integrated raised surface provides stability and strength when connected; a hub holds all the components together; and finally, gaskets provide additional sealing.
Slip-on flanges are easy to install and remove and are less expensive than other flange types. Slip-on flanges are ideal for applications where cost is an important consideration and the flange is not exposed to high pressure or vibration
Grades in SORF
Stainless Steel Slip-On Raised Face Flanges
Carbon Steel Slip-On Raised Face Flanges
Low Temperature Carbon Slip-On Raised Face Flanges
Alloy Steel Slip-On Raised Face Flanges
Duplex Steel Slip-On Raised Face Flanges
Nickel Alloy Slip-On Raised Face Flanges
Standard Basic flange dimensions for ASME B16.5. include ANSI B16.47, ANSI B16.36, ANSI B16.48 BS 4504, EN 1092 DIN, or API 6A.
Slip-on flanges are easy to install and remove and are less expensive than other flange types. Slip-on flanges are ideal for applications where cost is an important consideration and the flange is not exposed to high pressure or vibration
Use Of The Product
Slip-on flanges manufacturers are primarily suitable for fluids operating at low pressures. Additionally, these flanges perform well and have very little leakage. These flanges are now very commonly found in cooling water lines, fire water lines, low pressure compressed air lines, and process lines for substances such as steam, oil, gas, and condensate. These flanges are suitable for low pressure and high temperature systems.
- Flange fittings with compression designation classes 150 and 300 in sizes NPS 1/2 to NPS24 Requirements are specified in both metric and US units, and slip-on raised flange thread diameters and tapped holes are specified in inches. unit
- Flanged fittings such as the ANSI B16.5 Class 150 Slip-On Flanges with designated pressure rating classes such as 400, 600, 900, and 1500, sizes NPS 1/2 to NPS 24, and slip-on flange JIS 10k fittings with Class 2500 pressure rating designations in sizes NPS 1/2 to NPS 12 have been recognized in the non-mandatory Appendix E section,
We are one of the leading and most reputed manufacturers of Slip forged flanges. In addition to manufacturing ANSI B16.5 slip-on flanges, we are also known for supplying, selling, and exporting ASME B16.47 SORF flanges. ANSI/ASME B16.5 slip-on flange manufacturer in India. Our inventory list includes a large selection of ASTM A182 SS Class D slip-on flanges. Our factory also manufactures customized stainless steel slip-on flanges with flat faces.
Applications
ASME B16.5 slip-on flanges are known for their superior performance and are commonly designed for the following applications. To meet demand we offer a wide range of slip-on flat flanges through our global warehouse branch.
These slip flanges are used in various industries like Stainless Steel Slip on Flanges are used in Oil and Gas Pipeline Slip on Raised Face Flanges used in the chemical industry Alloy Steel SORF Flanges are used in Plumbing Flat Faced Slip-On are used in Heating
Slip on Pipe Flanges used in Water Supply Systems ANSI B16.5 Slip on Forged Flanges Used in Power Plant Steel slips on flanges are used in the fabrication industry. Slip on Flanges are used in Structural Pipe
SPECIFICATIONS
Flanges are specified by, for example, “weld neck RTJ” or “socket weld RF”. Dimensions of the ASME B16 ring connection surface and his RTJ seal. 5. Nominal Pipe Size (NPS). This is a dimensionless designation used to define the nominal pipe size (NPS) of a connecting pipe, fitting, or nozzle. Examples of this are NPS 4 and NPS 6.
Flange pressure class. This refers to the pressure and temperature rating of the flange and is required for all flanges. Examples include Classes 150, 300, 600, 900, 1500, and 2500.
SORF Manufacturing Standards
The ASME B16.5 slip-on flange specification for pipe-to-flange connections covers a variety of parameters such as materials, dimensions, pressure ratings, temperature ratings, marking, testing, and methods of designating openings for pipe Hastelloy flanges and flanged fittings.
Included are the following points:
- Copper-nickel SORF flanges designated in ratings 150, 300, 400, 600, 900, and 1500. These ratings for Alloy 20 slip-on flanges are typically available in sizes NPS 1/2 to NPS 24 and in duplex. Steel SORF flanges with the classification designation 2500 are available in sizes NPS 1/2 to NPS 12. These alloy steel sliding flange requirements are given in both metric and US customary units, and stainless steel sliding flange bolt and threaded hole diameters are given in inches
Slip on face flanges Material Grade
Discover a comprehensive range of Slip On Raised Face Flanges meticulously crafted to meet diverse industrial needs. Our Grades collection features top-quality materials, including ASTM A182, A240 F grades for stainless steel, ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3, CL1/CL2 for carbon steel, ASTM A182 F1, F5, F9, F11, F22, F91 for alloy steel, and more. Embracing precision engineering, our nickel alloy Slip raised face flanges encompass ASTM SB564, SB160, and SB472 series, while our copper alloy selection boasts ASTM SB 61, SB62, SB151, and SB152 standards. Elevate your projects with our Duplex Steel Slip On Raised Face Flanges, featuring ASTM A182, and A240F grades. Explore the epitome of durability and performance with our extensive Grades range, meticulously tailored to exceed industry standards.
Slip on Raised Flanges, Alloy Steel slip on raised face flanges Manufacturer & Exporter. ASME B 16.5, ASME B 16.47, ASTM A182, 105, 350, SB564, 160, 472 Slip On Flanges, Nickel Alloy SORF Flanges Suppliers.
Platinex Piping Solutions LLP is one of the leading Manufacturers, Supplier and Exporters of High quality Slip On Raised Face Flanges. These SORF Flanges are made using premium quality materials. These Flanges is available in various size, grades, Specification & thickness as per the clients requirements. These flanges are attached to the pipe by fillet welding at the hub and at the end of the pipe inside the flange. Slip-on flanges are available with raised, flat or RTJ faces, and are also available in orifice configurations. These are easily fitted and welded into different pipes. We Provide these flanges at market leading rates.
